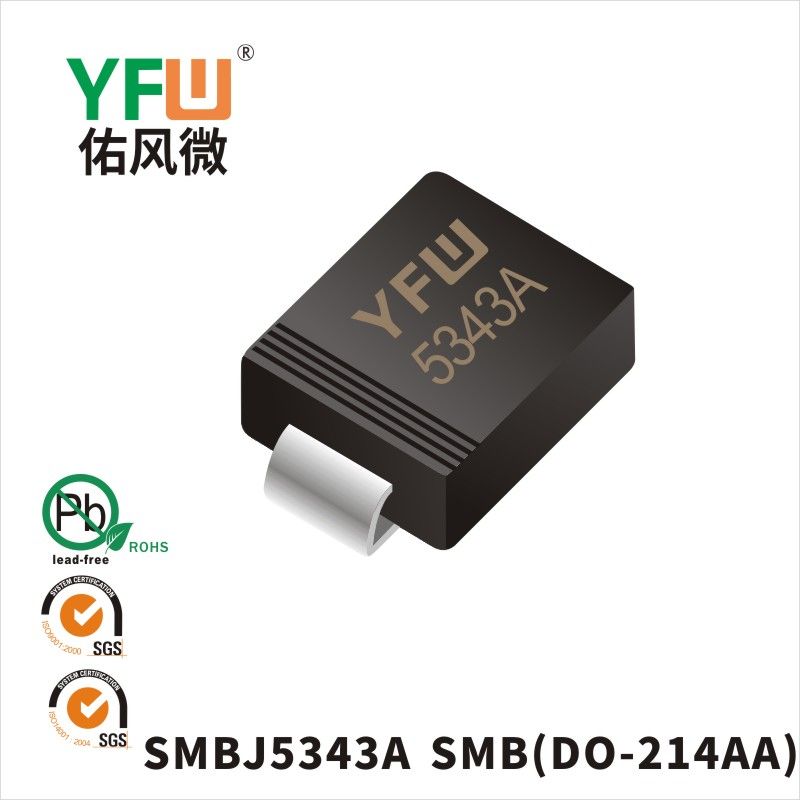

稳压二极管 SMBJ5343A 规格书_价格_PDF手册-广东佑风微原厂SMBJ5343A SMB(DO-214AA)_(YFW佑风微)品牌
Zener Diodes 稳压二极管
| TYPE | Nominal Zener Voltage | Maximum Zener Impedance | Maximum Reverse Leakage Current | Maximum DC Zener Current | ||||
| VZ @ IZT | IZT | ZZT @ IZT | ZZK @ IZK | IZK | IR @ VR | IZM | ||
| (V) | (mA) | (Ω) | (Ω) | (mA) | (μA) | (V) | (mA) | |
| SMBJ5333A | 3.3 | 380 | 3 | 400 | 1 | 300 | 1 | 1440 |
| SMBJ5334A | 3.6 | 350 | 2.5 | 500 | 1 | 150 | 1 | 1320 |
| SMBJ5335A | 3.9 | 320 | 2 | 500 | 1 | 50 | 1 | 1220 |
| SMBJ5336A | 4.3 | 290 | 2 | 500 | 1 | 10 | 1 | 1100 |
| SMBJ5337A | 4.7 | 260 | 2 | 450 | 1 | 5 | 1 | 1010 |
| SMBJ5338A | 5.1 | 240 | 1.5 | 400 | 1 | 1 | 1 | 930 |
| SMBJ5339A | 5.6 | 220 | 1 | 400 | 1 | 1 | 2 | 856 |
| SMBJ5340A | 6 | 200 | 1 | 300 | 1 | 1 | 3 | 790 |
| SMBJ5341A | 6.2 | 200 | 1 | 200 | 1 | 1 | 4 | 765 |
| SMBJ5342A | 6.8 | 175 | 1 | 200 | 1 | 10 | 4.9 | 700 |
| SMBJ5343A | 7.5 | 175 | 1 | 200 | 1 | 10 | 5.4 | 630 |
| SMBJ5344A | 8.2 | 150 | 1 | 200 | 1 | 10 | 5.9 | 580 |
| SMBJ5345A | 8.7 | 150 | 1 | 200 | 1 | 10 | 6.3 | 545 |
| SMBJ5346A | 9.1 | 150 | 2 | 150 | 1 | 7.5 | 6.6 | 520 |
| SMBJ5347A | 10 | 125 | 2 | 125 | 1 | 5 | 7.2 | 475 |
| SMBJ5348A | 11 | 125 | 2 | 125 | 1 | 5 | 8 | 430 |
| SMBJ5349A | 12 | 100 | 2.5 | 125 | 1 | 2 | 8.6 | 395 |
| SMBJ5350A | 13 | 100 | 2.5 | 100 | 1 | 1 | 9.4 | 365 |
| SMBJ5351A | 14 | 100 | 2.5 | 75 | 1 | 1 | 10.1 | 340 |
| SMBJ5352A | 15 | 75 | 2.5 | 75 | 1 | 1 | 10.8 | 315 |
| SMBJ5353A | 16 | 75 | 2.5 | 75 | 1 | 1 | 11.5 | 295 |
| SMBJ5354A | 17 | 70 | 2.5 | 75 | 1 | 0.5 | 12.2 | 280 |
| SMBJ5355A | 18 | 65 | 2.5 | 75 | 1 | 0.5 | 13 | 265 |
| SMBJ5356A | 19 | 65 | 3 | 75 | 1 | 0.5 | 13.7 | 250 |
| SMBJ5357A | 20 | 65 | 3 | 75 | 1 | 0.5 | 14.4 | 237 |
| SMBJ5358A | 22 | 50 | 3.5 | 75 | 1 | 0.5 | 15.8 | 216 |
| SMBJ5359A | 24 | 50 | 3.5 | 100 | 1 | 0.5 | 17.3 | 198 |
| SMBJ5360A | 25 | 50 | 4 | 110 | 1 | 0.5 | 18 | 190 |
| SMBJ5361A | 27 | 50 | 5 | 120 | 1 | 0.5 | 19.4 | 176 |
| SMBJ5362A | 28 | 50 | 6 | 130 | 1 | 0.5 | 20.1 | 170 |
| SMBJ5363A | 30 | 40 | 8 | 140 | 1 | 0.5 | 21.6 | 158 |
| SMBJ5364A | 33 | 40 | 10 | 150 | 1 | 0.5 | 23.8 | 144 |
| SMBJ5365A | 36 | 30 | 11 | 160 | 1 | 0.5 | 25.9 | 132 |
| SMBJ5366A | 39 | 30 | 14 | 170 | 1 | 0.5 | 28.1 | 122 |
| SMBJ5367A | 43 | 30 | 20 | 190 | 1 | 0.5 | 31 | 110 |
| SMBJ5368A | 47 | 25 | 25 | 210 | 1 | 0.5 | 33.8 | 100 |
| SMBJ5369A | 51 | 25 | 27 | 230 | 1 | 0.5 | 36.7 | 93 |
| SMBJ5370A | 56 | 20 | 35 | 280 | 1 | 0.5 | 40.3 | 86 |
| SMBJ5371A | 60 | 20 | 40 | 350 | 1 | 0.5 | 43 | 79 |
| SMBJ5372A | 62 | 20 | 42 | 400 | 1 | 0.5 | 44.6 | 76 |
| SMBJ5373A | 68 | 20 | 44 | 500 | 1 | 0.5 | 49 | 70 |
| SMBJ5374A | 75 | 20 | 45 | 620 | 1 | 0.5 | 54 | 63 |
| SMBJ5375A | 82 | 15 | 65 | 720 | 1 | 0.5 | 59 | 58 |
| SMBJ5376A | 87 | 15 | 75 | 760 | 1 | 0.5 | 63 | 54.5 |
| SMBJ5377A | 91 | 15 | 75 | 760 | 1 | 0.5 | 65.5 | 52.5 |
| SMBJ5378A | 100 | 12 | 90 | 800 | 1 | 0.5 | 72 | 47.5 |
| SMBJ5379A | 110 | 12 | 125 | 1000 | 1 | 0.5 | 79.2 | 43 |
| SMBJ5380A | 120 | 10 | 170 | 1150 | 1 | 0.5 | 86.4 | 39.5 |
| SMBJ5381A | 130 | 10 | 190 | 1250 | 1 | 0.5 | 93.2 | 36.6 |
| SMBJ5382A | 140 | 8 | 230 | 1500 | 1 | 0.5 | 101 | 34 |
| SMBJ5383A | 150 | 8 | 330 | 1500 | 1 | 0.5 | 108 | 31.6 |
| SMBJ5384A | 160 | 8 | 350 | 1650 | 1 | 0.5 | 115 | 29.4 |
| SMBJ5385A | 170 | 8 | 380 | 1750 | 1 | 0.5 | 122 | 28 |
| SMBJ5386A | 180 | 5 | 430 | 1750 | 1 | 0.5 | 130 | 26.4 |
| SMBJ5387A | 190 | 5 | 450 | 1850 | 1 | 0.5 | 137 | 25 |
| SMBJ5388A | 200 | 5 | 480 | 1850 | 1 | 0.5 | 144 | 23.6 |
